Product Overview
The Small Benchtop Temperature and Humidity Test Chamber is designed for environmental reliability testing during product research, development, production, and quality inspection processes. It provides precise simulation of various climatic conditions, including high temperature, low temperature, and temperature-humidity cycling environments, enabling accurate evaluation of product performance under extreme environmental conditions.
This compact environmental chamber is widely used in industries such as aerospace, defense, electronics, telecommunications, electrical equipment, automotive components, materials testing, and semiconductor manufacturing. With its small footprint, low vibration, quiet operation, and high testing accuracy, it is particularly suitable for laboratories and facilities where installation space is limited.
Key Features
●Compact benchtop design for laboratories with limited space
●Precise temperature and humidity control
●Stable and uniform test environment
●Suitable for reliability, quality control, and accelerated life testing
●Low noise and low vibration operation
●Wide temperature and humidity testing range
●Compliant with international environmental testing requirements
Technical Specifications
| Model | ZC4024 | |
|---|---|---|
| Chamber Volume | 22.5 L | |
| Temperature Test | Temperature Range | -40°C to +150°C |
| Temperature Fluctuation | ±0.5°C | |
| Temperature Uniformity | ≤2.0°C | |
| Heating Rate | 3.0°C/min | |
| Cooling Rate | 3.0°C/min | |
| Temperature & Humidity Test | Temperature Range | +10°C to +90°C |
| Humidity Range | 10%RH – 98%RH | |
| Humidity Fluctuation | ±3.0%RH | |
| Humidity Uniformity | ±5.0%RH | |
| Humidity Deviation | ±2%~3%RH (>75%RH); ±5.0%RH (≤75%RH) | |
| Working Chamber Dimensions | Width (mm) | — |
| Depth (mm) | — | |
| Height (mm) | — | |
| External Dimensions | Width (mm) | — |
| Depth (mm) | — | |
| Height (mm) | — | |
| Heater Power | 1000 W | |
| Power Supply | AC380V ±10%, 50Hz ±1, Three-Phase Four-Wire + Ground (3/N/PE), Ground Resistance ≤4Ω | |
| Cooling Method | Air-Cooled | |
| Air Circulation Capacity | 100 cu.ft./min (2.8 m³/min) | |

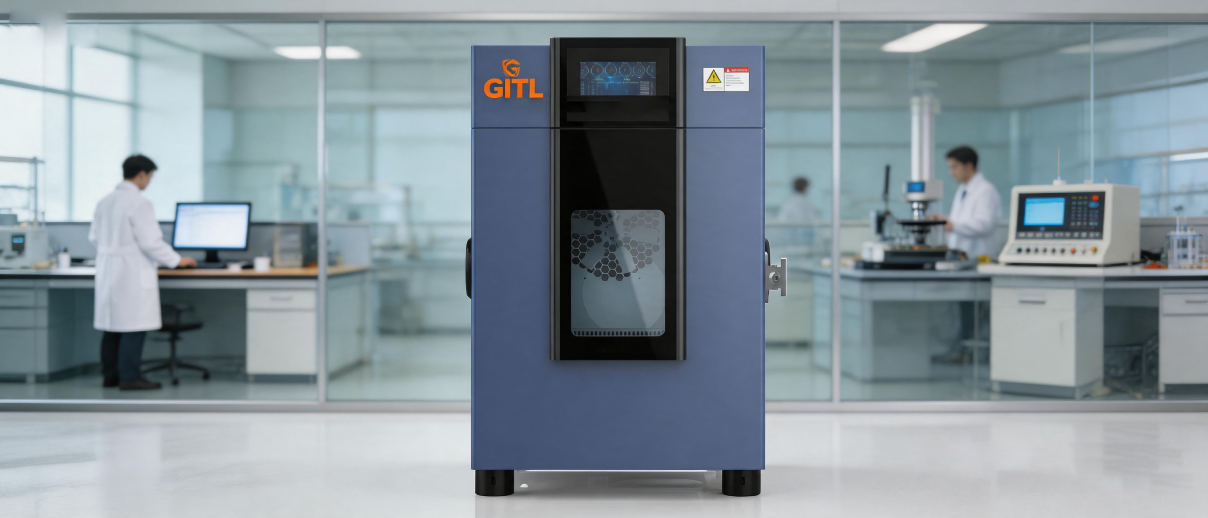

Applications
The Small Temperature & Humidity Test Chamber is ideal for:
- Electronic components and PCBs
- Automotive parts and assemblies
- Aerospace and defense products
- Communication equipment
- Electrical and electronic products
- Semiconductor devices
- New materials testing
- Research institutes and laboratories
- Reliability verification and quality assurance testing
Why Choose Our Small Temperature & Humidity Test Chamber?
Our compact environmental test chambers deliver highly accurate temperature and humidity control, ensuring reliable and repeatable test results. Designed for research laboratories, quality control departments, and manufacturing facilities, these chambers provide an efficient solution for environmental simulation, reliability testing, and product qualification while minimizing installation space requirements.
